How Welding Positioner Fixtures Improve Welding Efficiency

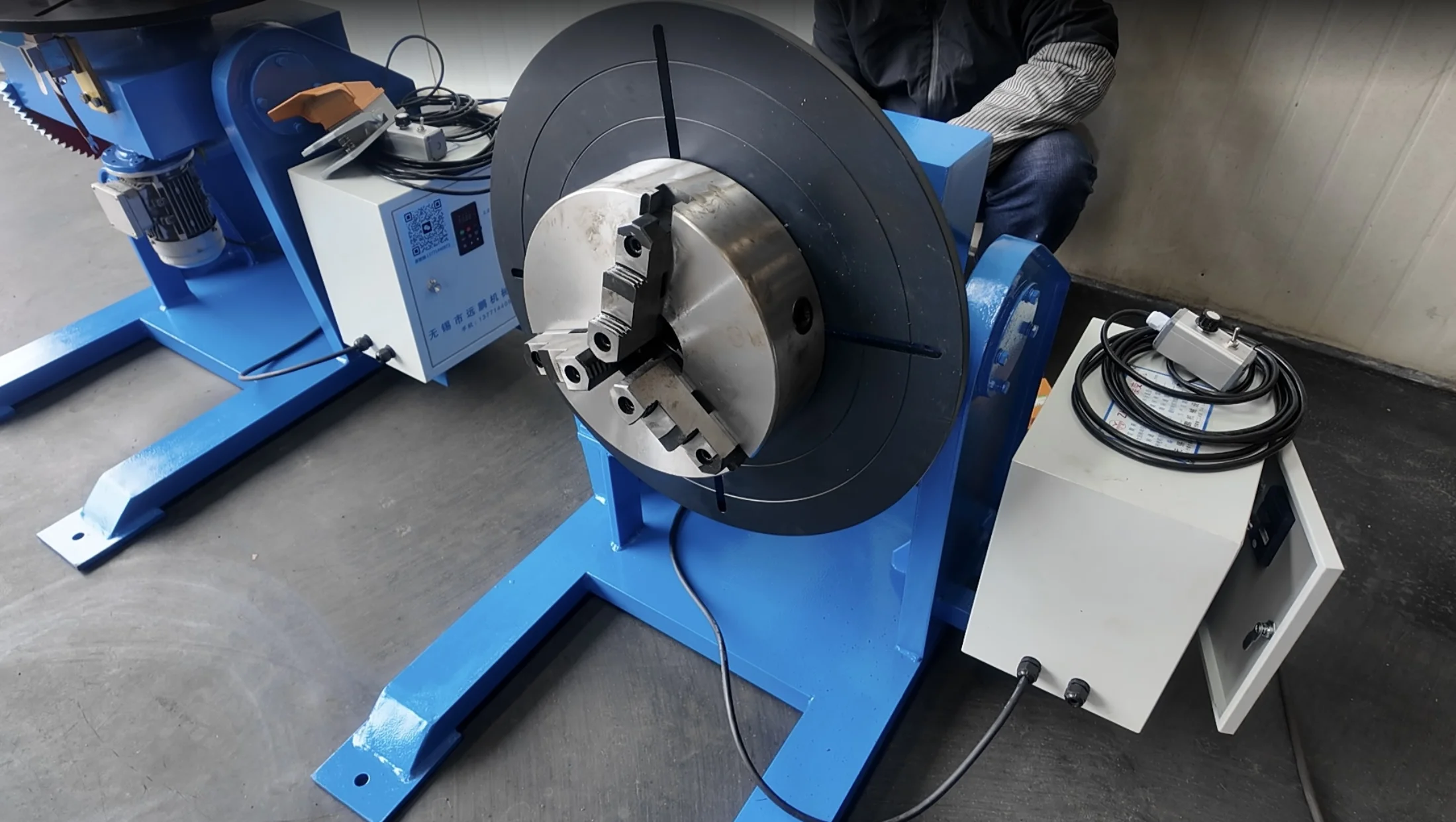

Welding Positioner Fixtures

Optimizing Welding Position

  • Adjust Workpiece Orientation: Welding positioner fixtures can precisely position workpieces in the optimal welding angle, keeping seams in flat or horizontal positions instead of difficult overhead welds. This improves welding speed and quality.

  • Reduce Angle Changes: For complex structures, the welding positioner enables smooth rotation/tilting, maintaining consistent welding angles. This eliminates frequent operator adjustments, saving time and effort.

Enhancing Positioning Accuracy

  • Quick Clamping & Positioning: Fixtures allow rapid, repeatable workpiece alignment, reducing setup time. For mass production, this ensures consistent weld quality and efficiency.

  • Precise Seam Alignment: Accurate positioning minimizes weld defects caused by misalignment, reducing rework and improving first-pass yield.

Enabling Automated Welding

  • Integration with Robotic Systems: Welding positioners can synchronize with automated welders or robots through programmed motion control. This boosts speed and precision while reducing human error.

  • Faster Production Cycles: In automated lines, welding positioner fixtures enable rapid clamping, positioning, and welding, increasing throughput for mass production.

Reducing Non-Welding Time

  • Minimize Part Flipping: For double-sided welds, the positioner’s rotation/tilt allows complete welding in a single setup, eliminating manual repositioning.

  • Easier Slag Removal: Well-designed fixtures and positioner movement make slag and spatter removal quicker, reducing cleanup time.

Key Benefits Summary:

30-50% faster welding with optimal positioning

Higher first-pass yield (reduced rework)

Seamless automation with robotic welding systems

Lower labor costs by minimizing manual adjustments

Industry Applications:

Pressure vessel welding

Automotive component fabrication

Pipe and structural steel manufacturing
